Model

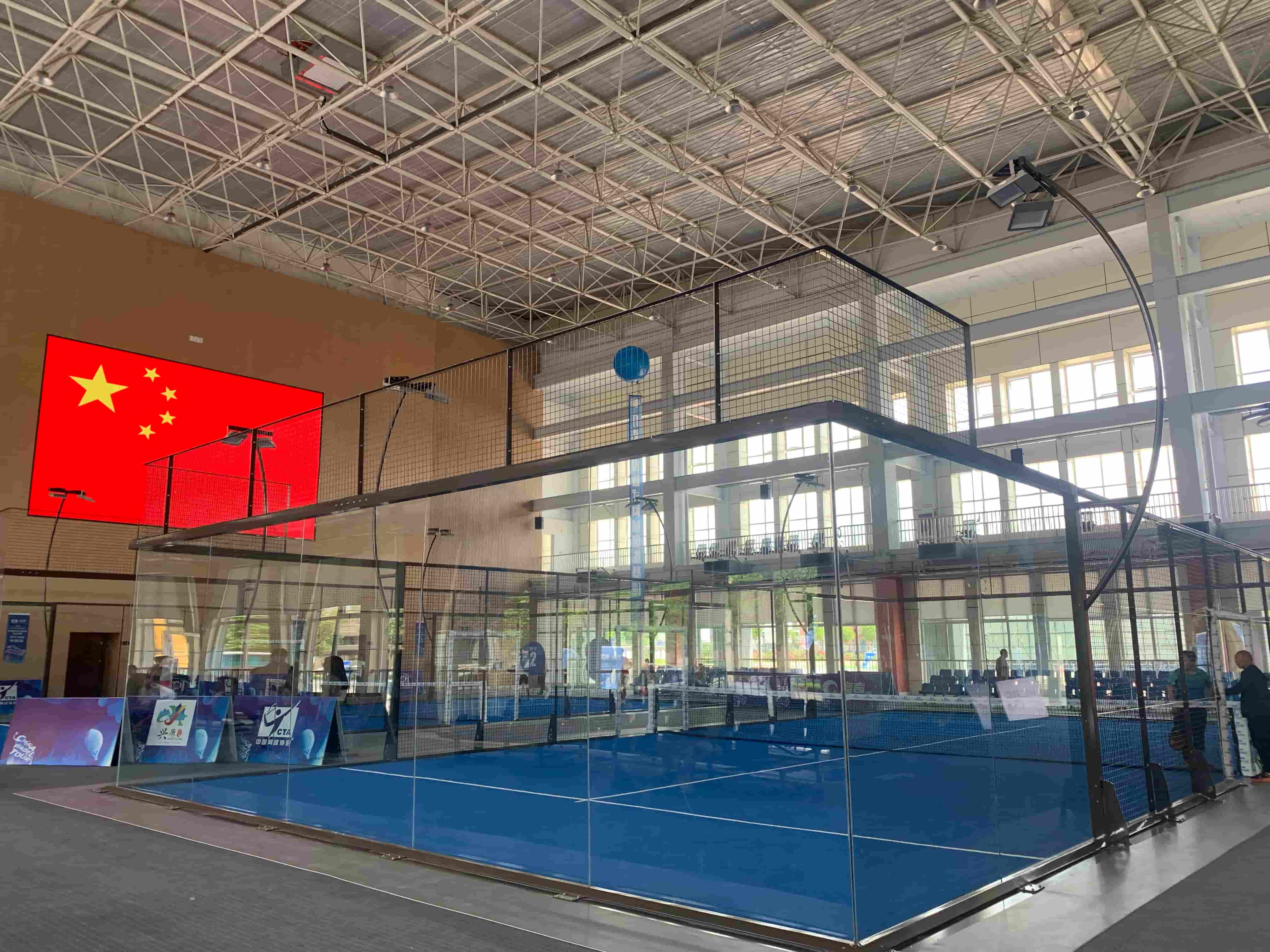

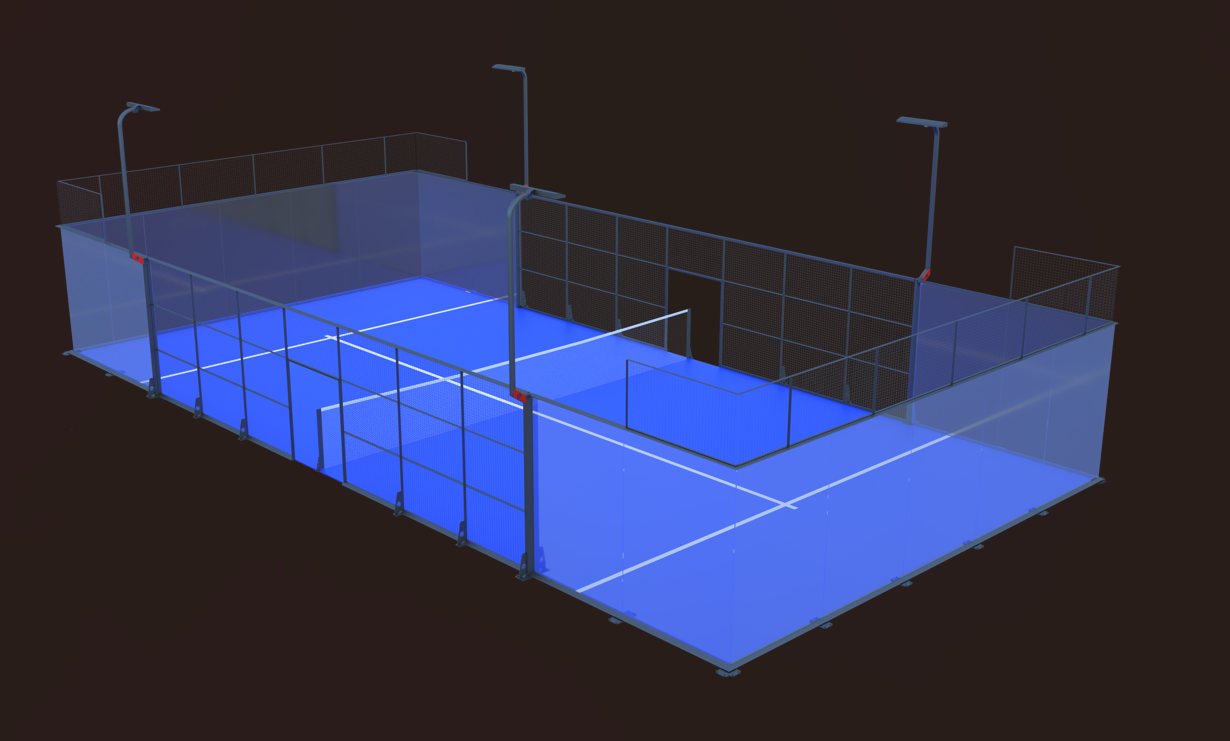

Seaside Full Panoramic Model
Court Size
Interior:20 m x 10 m;
Surface
12mm，8000Dtex，Density：52500s/㎡，SBR Backing
Structure
Column：4PCS 100*50*3.0mm rectangular steel pipe, height 3m；welding 10mm thick flange plate、8mm thick reinforcing rib ；
Upper Crossbeam ：155×40×2.5mm bullet-shaped tube+80*40*2.75mm rectangular steel pipe；
Bottom Crossbeam ：133*40*2.5 trapezoidal steel pipe；
Mesh Diameter: frame 40*20*2.0+4mm steel plate; 4mm thick mesh,
mesh size: 50*50mm
Fastener：316 stainless steel bolts and nuts； PE Glass Spacer; Hot-dip Galvanized + Electrostatic Sprayed Steel Glass Connector
Tempering Glass
Size：2m*3m,Thickness：12mm
Light&Light column
8 sets of 400W LED,IP66，Philip Brand
Column Size:60*2.75mm curved round tube light pole； height 6m；
Net&Net column
3mm thick PE braided net, mesh 45*45mm; The top 6 mesh double layer, PVC mesh cloth clip 6mm coarse coated plastic wire rope
Column size：180*80*3.0 aluminum alloy post tube with a built-in pure copper tensioner; cast aluminum alloy pipe cap and handle; installation kit made of steel, 10mm thick welded flange plate.
Customized
Support all customization
Highlight
Real Hot dip galvanized & Powder coating
Top Quality Accessory
Laser-Cutting & Robert Welding
Anti-Injury System
